Rubber pad for pedestals
DDR PG 200×200
Compatible with all types of joists
Height adjustment of the pedestal with 1 mm precision
Integration with the Bruggan-Expert system
Quick and easy installation
European manufacturing and quality control
Rubber pad for pedestals
DDR PG 200×200
Large-format universal rubber pad placed under adjustable pedestals.
Used for additional stabilization, compensation of minor substrate unevenness, and surface protection. Reduces vibrations and noise while ensuring more even load distribution. Suitable for installation on both concrete and soft surfaces.
Advantages
Height adjustment range starting from 15 mm
Universal height range from 15 to 245 mm
Slope correction up to 5%
Installation without fixing to the substrate
High load capacity up to 1000 kg
Technical
specifications pedestals
Product specification
MATERIAL
Polypropylene (UV-stabilized)
Комплектация доски
Adjustable pedestal XL 95-125
Adjustable pedestal L 65-95
Adjustable pedestal M 35-65
Adjustable pedestal S 15-35
Slope corrector 7% DDR KN
Rubber pad for pedestals DDR PG 200×200
The standard in professional installation.

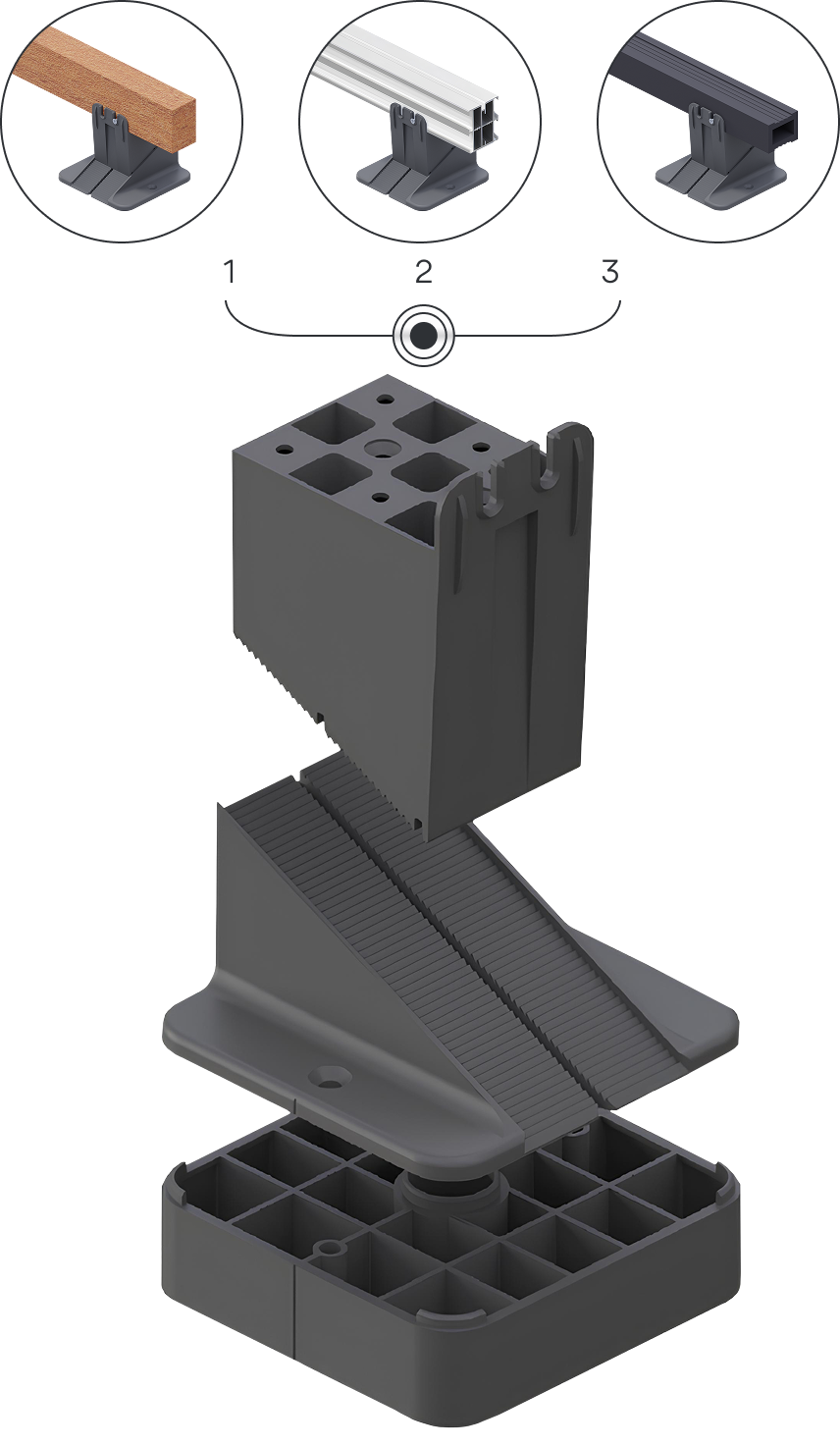

The Raptor system is compatible with all types of joists.
Including aluminium systems (e.g., Bruggan Expert), as well as wooden and WPC profiles.
SYSTEM INTEGRATION
BRUGGAN EXPERT
SUITABLE FOR
WOODEN PROFILES
COMPATIBLE WITH
WPC PROFILES
Каждый элемент спроектирован с целью повышения точности, комфорта и надёжности конструкции.
Engineering precision. Architectural freedom.

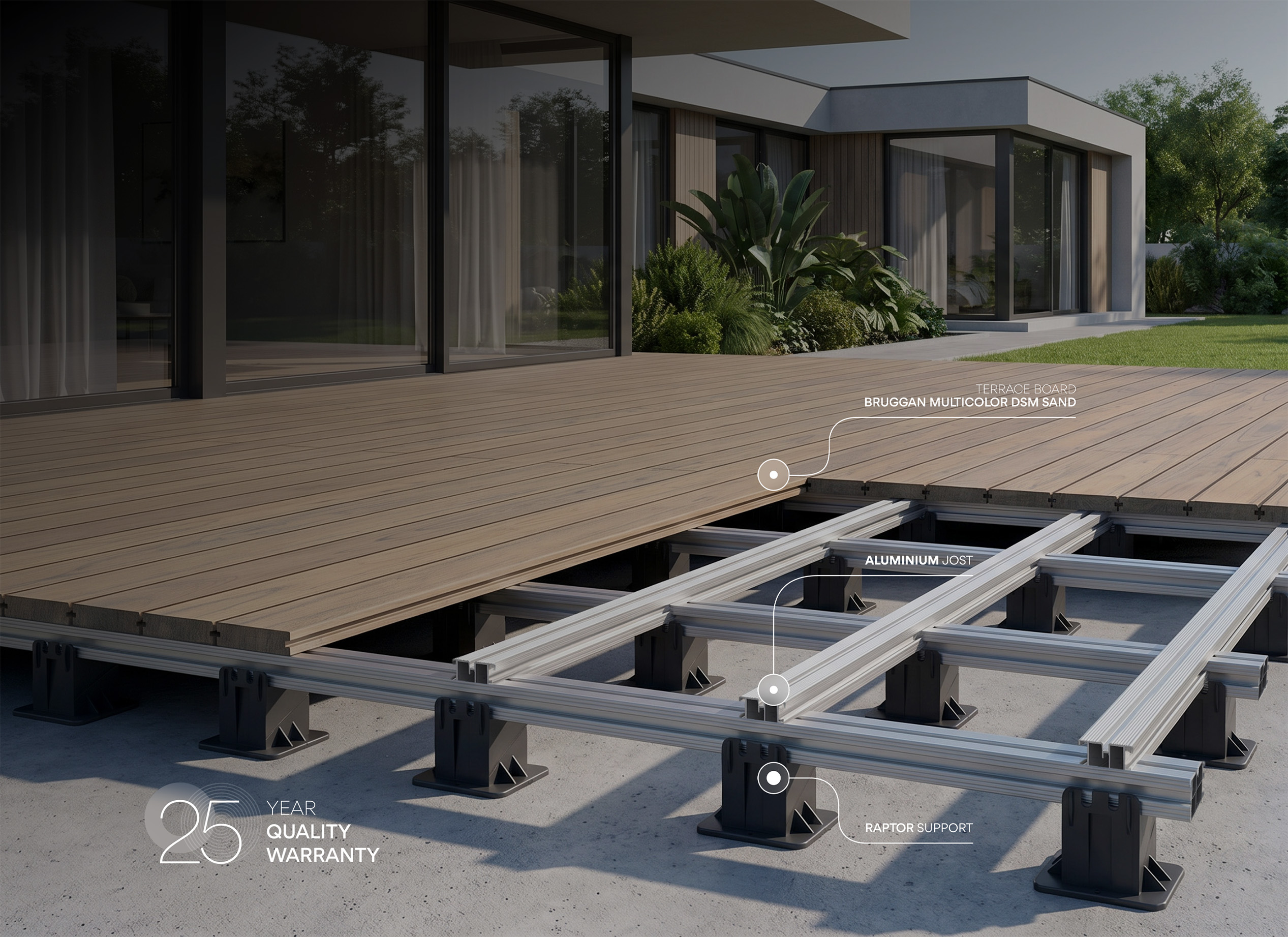

RAPTOR and STANDARD pedestals are a reliable solution for designing terraces on complex substrates — from rooftop decks to public spaces. Combined with Bruggan and Legro boards, they deliver clean geometry, stability, and complete design freedom without limitations. Fast installation, slope adaptability, and durability — everything required for confident architectural solutions.
